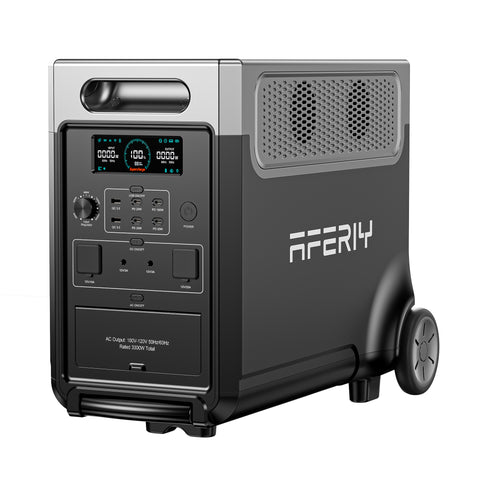

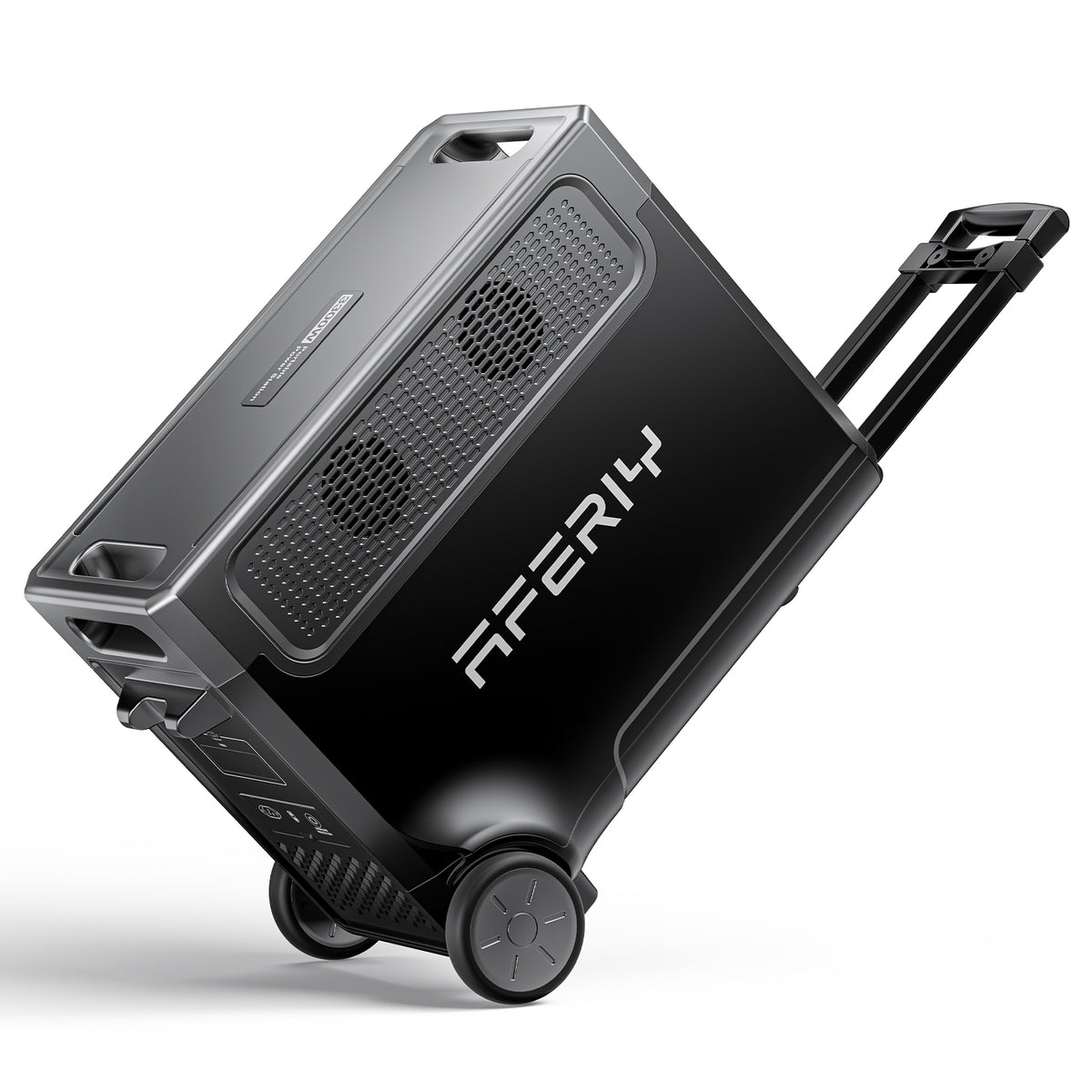

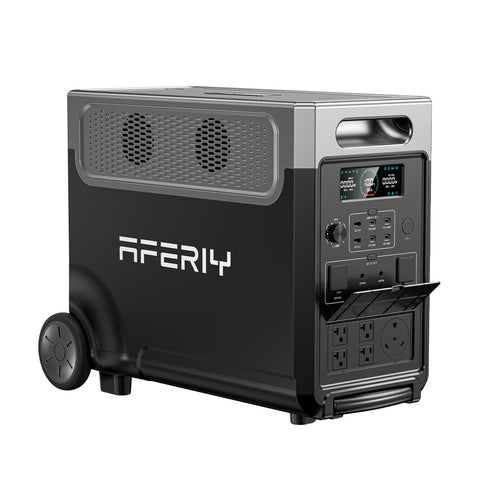

AFERIY P310 Portable Power Station with Expandable Capacity 3600W 3840Wh

Regarding the power station’s capacity. The nominal capacity of the P310 is 3840Wh. In practice, the output capacity is generally lower than the nominal capacity, for the following reasons:

• Battery lifespan protection: The battery never completely discharges (even when the power station indicates 0%, about 5% of the energy remains in the battery pack) to extend the station’s lifespan;
• Self-consumption: When the AC switch on the power station is turned on, the device consumes about 20-25W per hour. Thus, the longer the device is used, the higher the station’s own energy consumption becomes;
• Conversion losses: The power station’s battery pack converts DC to AC via an inverter, with a conversion efficiency of about 90%. Additionally, there are energy losses across various circuits.

These factors result in an actual output capacity that is lower than the nominal capacity.

The main differences between AFERIY P310 and AFERIY P310B are as follows:

• P310: A portable power station with a power of 3600W and a capacity of 3840Wh. It operates independently and can directly power various devices. It supports multiple charging modes, including solar energy, AC charging, cigarette lighter charging, and generator charging.
• P310B: An expansion battery with a capacity of 3840Wh, which cannot be used on its own. It must be connected to the P310 to increase the overall capacity of the station and extend its runtime.

In summary: The P310 is the main power station, capable of operating independently, while the P310B is an expansion battery designed to extend the runtime of the P310.

The app is called BrightEMS.

• For Android phones, you can download and install it from Google Play.
• For iOS phones, you can download and install it from the Apple Store.

Once installation is complete, select your region, then create an account and log in. No email or phone verification code is required. After you have registered and logged in, go to the device addition section. The app will automatically search for available devices nearby (please ensure that Bluetooth is enabled). If you wish to search for a specific model, click on the corresponding model in the “Add a device manually” section. Once the device is detected, click on it to proceed with pairing. After pairing, you will access the network configuration, which only supports 2.4 GHz WiFi networks.

Yes, please note that you must activate the corresponding output switch on the portable power station.

When the portable power station is connected between an AC wall outlet and appliances, and both the power switch and the AC switch on the portable power station are turned ON, the product switches to UPS mode (uninterruptible power supply).

The cooling fan will not run continuously; it only starts automatically when the internal temperature of the power station exceeds 60 degrees.

It is quiet during normal operation, and when the cooling fan is activated, the noise level is below 60 dB.

• Without turning on the AC switch, if the portable power bank is turned on without any other operation, the standby energy consumption will automatically be set to no output if it is below 8 W, and the unit will automatically shut down after 5 minutes.
• With the AC switch turned on, if the portable power bank is turned on without any other operation, the standby energy consumption will automatically be set to no output if it is between 15 W and 25 W, and the unit will automatically shut down after 8 hours.

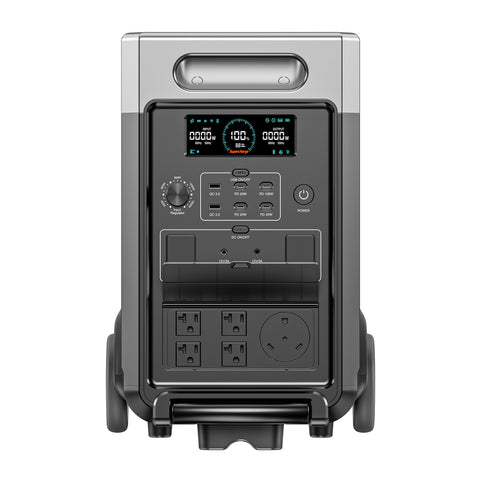

The AFERIY P310 3600W 3840Wh portable power generator is equipped with 15 output ports, allowing you to power 15 devices simultaneously, including:

• 5 AC output ports (100V-120V, 3600W)
• 2 USB-A output ports (QC3.0 18W)
• 3 USB-C output ports (20W)
• 1 USB-C output port (PD 100W)
• 2 DC output ports (12V, 3A)
• 1 cigarette lighter output port (12V, 10A)
• 1 XT60 output port

It depends on the combination of power, voltage, and current of the solar panels you choose. You can connect the solar panels in series or in parallel. Please note that the portable power station AFERIY AF-P310 supports a maximum solar input of 2000W, 160V, 20A. As long as the solar panels meet these specifications, most will be compatible.

If you use AFERIY solar panels, you can choose one of the following combinations for charging:

• 1 AF-S400A1 panel (400W);
• 2 AF-S400A1 panels in series (400W*2);
• 3 AF-S400A1 panels in parallel (400W*3)
• AF-S400A1 panels 2 series and 2 parallel (400W*4);

By choosing the right combination of solar panels, you can optimize the charging efficiency.

The AFERIY P310 3600W 3840Wh is a portable power station offering several charging options for maximum flexibility and efficiency. Taking into account charging efficiency and conversion losses, here is an overview of the different charging methods and their durations:

1. AC Charging (Wall Outlet)
   • Max input power: 2200W
   • Charging time: approximately 2 hours
2. Solar Charging
   • Max input power: 2000W
   • Charging time: approximately 2.5 hours (under optimal sunlight conditions)
3. Generator Charging (using a pure sine wave generator with an output power exceeding 2200W)
   • Input power: 2200W
   • Charging time: approximately 2 hours (same as AC charging)
4. Hybrid Charging (AC + Solar, under optimal conditions)
   • Max input power: 4200W (2200W AC + 2000W solar)
   • Charging time: approximately 1.2 hours
5. Car Charging (via cigarette lighter)
   • Input power: 12V / 24V
   • Charging time: variable depending on the vehicle's voltage, longer duration

Thanks to its multiple charging options, the AFERIY P310 adapts to all situations: domestic emergencies, camping, off-grid living, mobile work, and much more.

Yes, the portable power station AFERIY can be permanently connected to a solar panel. However, at sunrise or sunset, the solar panel may emit a ticking sound (due to an internal relay in the portable power station, which acts as a protective circuit). This noise is normal and will not damage the power station or the solar panel. Additionally, please note that the portable power bank will experience a slight energy consumption when connected to the solar panel without any power input. Therefore, it is recommended to connect the solar panel only during the day and disconnect it when there is no charging effect at night.

Yes, only one car charging cable (ACC, XT90 connector) is required. Please note that the car charging cable is capable of carrying a current of over 10 A.

No. In the event of a malfunction of the internal battery, please contact AFERIY customer service.

No.

If the battery is to remain unused for an extended period (over 3 months), it should be maintained at 60-80% of its nominal capacity (it is recommended to check and charge it every 3 months). Store it in a dry, cool place. Avoid contact with corrosive substances, and keep it away from fire and heat sources.

AC output voltage standards vary by country. Please check your device’s AC voltage before use. Specific method:

• If you purchased before December 2023, quickly press the AC button 10 times to switch the AC output voltage between 100V and 110V.
• If you purchased after this date, there is no need to manually change the voltage, as the device automatically adapts to an AC output voltage of 100-120V. The specific value is determined by the input voltage or the load's voltage requirement.

If you purchased before December 2023, hold the AC button for 3 seconds to switch between 50Hz and 60Hz. If you purchased after this date, there is no need to manually change the frequency, as the device automatically adapts to the input/output frequency.

• If you purchased before December 2023, it is not possible to adjust the AC input power.
• If you purchased after this date, the AC input power can vary over time. Note: the total charging power must be less than 3600W. If you need to change the input power, proceed as follows: press the AC button for 10 seconds to enter power switching mode. The screen will display the AC input power adjustment interface, where you can configure the AC input power; after staying on the current AC input power adjustment interface for 5 seconds, the system will automatically save the setting and return to the main interface. The AC input power can be adjusted to 5 levels: 400W, 800W, 1200W, 1600W, and 2200W.
